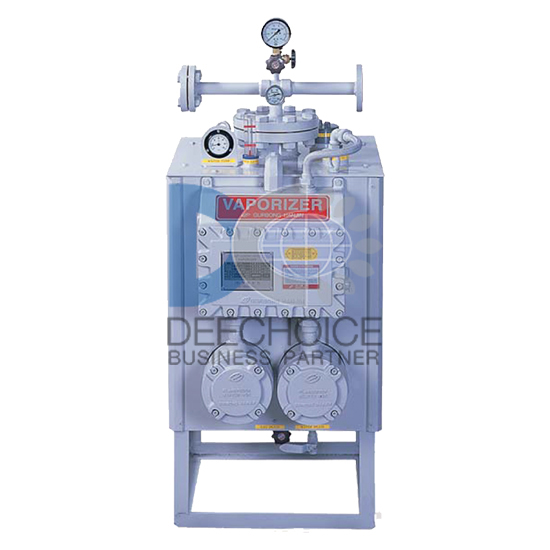

Electric & Water Bath type
| Brand: | HANJIN |
| Model: | HANJIN-VAPORIZER |
| Spec สินค้า: | อุปกรณ์ระบบหม้อต้ม |
| Design Pressure: | 1.8Mpa |
| Hydraulic Test Pressur: | 2.7Mpa |
| Air Tight Test: | 1.76Mpa |
| Design Temperature: | 100 C |
| Operating Temperaturel: | 60-70 C |
| Safety valve setting pressure: | 1.76Mpa |
| Saitabie Gas: | LPG |
| Origin: |
Asia |
| Data Sheet: | Information |

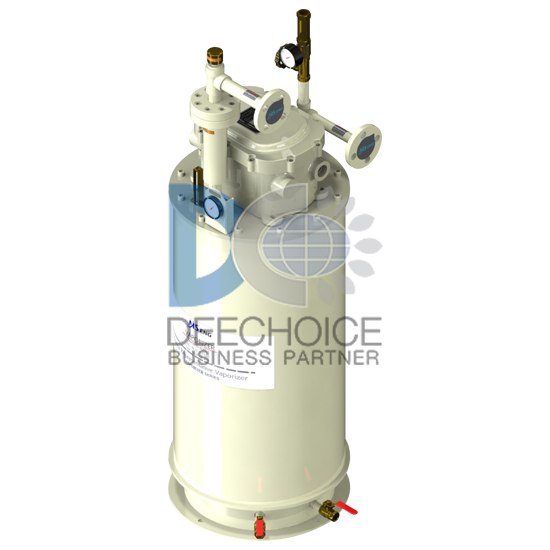

Electric & Water Bath type
| Brand: | MS ENG-Vaporizer |
| Spec สินค้า: | อุปกรณ์ระบบหม้อต้ม |
| Model | Capacity ( kg/hr ) | LPG Liquid Inlet Size | LPG Vapor Outlet Size | Heater Capacity ( KW ) | Empty Weight ( kg ) | Water Capacity (Liter) | Pressure Safety Valve Size |
| MS-EV50 | 50 | 3/4" | 1" | 7.5 | 65 | 50 | 3/4" |
| MS-EV100 | 100 | 3/4" | 1" | 15 | 85 | 60 | 3/4" |
| MS-EV150 | 150 | 3/4" | 1" | 22.5 | 125 | 70 | 3/4" |
| MS-EV200 | 200 | 3/4" | 1" | 30 | 150 | 120 | 3/4" |
| MS-EV300 | 300 | 3/4" | 1" | 45 | 185 | 150 | 3/4" |
| MS-EV400 | 400 | 3/4" | 1" | 60 | 300 | 150 | 3/4" |
| Saitabie Gas: | LPG |
| Origin: | Asia |
| Data Sheet: | Information |
